Angular2 系列教程(十一)路由嵌套、路由生命周期、matrix URL notation

今天我们要讲的是 ng2 的路由的第二部分,包括路由嵌套、路由生命周期等知识点。

例子

例子仍然是上节课的例子:

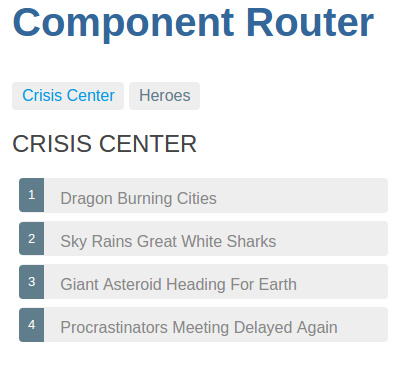

上节课,我们讲解了英雄列表,这节课我们讲解危机中心。

源代码:

https://github.com/lewis617/angular2-tutorial/tree/gh-pages/router

运行方法:

在根目录下运行:

1
http-server

路由嵌套

我们在 app/app.component.ts 中定义了路由 URL 和视图组件,其中包括这样一项:

app/app.component.ts

1
2
3
4
5
6
7

{ // Crisis Center child route
path: '/crisis-center/...',
name: 'CrisisCenter',
component: CrisisCenterComponent,
useAsDefault: true
},

那个...就是代表这个 URL 下面可以定义子路由,也就是嵌套路由。嵌套路由是如何实现的?很简单,只需要在视图组件中再次配置路由即可:

app/crisis-center/crisis-center.component.ts

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
import {Component}     from 'angular2/core';
import {RouteConfig, RouterOutlet} from 'angular2/router';

import {CrisisListComponent} from './crisis-list.component';
import {CrisisDetailComponent} from './crisis-detail.component';
import {CrisisService} from './crisis.service';

@Component({
template: `
<h2>CRISIS CENTER</h2>
<router-outlet></router-outlet>
`,
directives: [RouterOutlet],
providers: [CrisisService]
})
@RouteConfig([
{path:'/', name: 'CrisisList', component: CrisisListComponent, useAsDefault: true},
{path:'/:id', name: 'CrisisDetail', component: CrisisDetailComponent}
])
export class CrisisCenterComponent { }

上述代码,我们干了几件事”:

  1. 写了一个组件,包括h2router-outlet
  2. 使用@RouteConfig,进行路由配置

这样我们就实现了嵌套路由。就是这么简单。

路由生命周期

路由跳转到别的视图的时候,会触发一个路由的生命周期钩子:routerCanDeactivate:

app/crisis-center/crisis-detail.component.ts

1
2
3
4
5
6
7
8
9
10

routerCanDeactivate(next: ComponentInstruction, prev: ComponentInstruction) : any {
// Allow synchronous navigation (`true`) if no crisis or the crisis is unchanged.
if (!this.crisis || this.crisis.name === this.editName) {
return true;
}
// Otherwise ask the user with the dialog service and return its
// promise which resolves to true or false when the user decides
return this._dialog.confirm('Discard changes?');
}

这段代码,会在你修改完危机信息后,既不点击 save 也不点击 cancer 时候触发。也就是

1
this._dialog.confirm('Discard changes?');

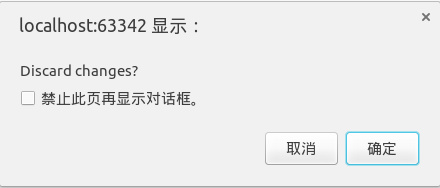

弹出一个对话框:

这里为什么要使用单独的dialog 服务呢?为何不直接出发window.confirm()?因为路由的生命周期接受 Bool 或者 Promise 对象( ng1 也是这样哦)。而window.confirm 并不返回一个promise对象,我们需要对其进行包装:

app/dialog.service.ts

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19


import {Injectable} from 'angular2/core';
/**
* Async modal dialog service
* DialogService makes this app easier to test by faking this service.
* TODO: better modal implemenation that doesn't use window.confirm
*/
@Injectable()
export class DialogService {
/**
* Ask user to confirm an action. `message` explains the action and choices.
* Returns promise resolving to `true`=confirm or `false`=cancel
*/
confirm(message?:string) {
return new Promise<boolean>((resolve, reject) =>
resolve(window.confirm(message || 'Is it OK?')));
};
}

我们使用 Promise 包装了confirm 这个方法,使得这个服务,会触发confirm的同时,最后也能返回一个Promise。这样以来我们就可以在路由的生命周期中尽情的使用了!

值得一提的是 ng1 路由的resolve属性也是接受一个Promise,有兴趣的同学可以看我在 ng1 中对 wilddog 的路由改装:

https://github.com/lewis617/wild-angular-seed/blob/gh-pages/components/wilddog.utils/wilddog.utils.js#L85

matrix URL notation

当我们从危机详情视图返回危机列表视图的时候,我们发现 URL 变成了:

http://localhost:63342/angular2-tutorial/router/index.html/crisis-center/;id=1;foo=foo

;id=1;foo=foo 这个参数是我们没有见过的,我们知道query string一般都是?&,而这个参数则使用了;,这叫做 matrix URL notation。

Matrix URL notation is an idea first floated in a 1996 proposal by the founder of the web, Tim Berners-Lee.

Although matrix notation never made it into the HTML standard, it is legal and it became popular among browser routing systems as a way to isolate parameters belonging to parent and child routes. The Angular Component Router is such a system.

The syntax may seem strange to us but users are unlikely to notice or care as long as the URL can be emailed and pasted into a browser address bar as this one can.

这是 ng2 官方文档对这个概念的解释,我们从中得知,这个概念用区分参数属于父视图还是子视图。

我们在上节课英雄列表中,发现 URL 是普通的 query string。为什么在这里变成了_matrix URL_ notation?因为英雄列表视图没有子视图,没有嵌套路由的概念。而危机中心则使用了嵌套路由,拥有父子视图的嵌套,为了加一区分,ng2 的路由系统使用了 matrix URL notation 这个概念。


教程示例代码及目录

示例代码:https://github.com/lewis617/angular2-tutorial

目录:http://www.liuyiqi.cn/tags/Angular2/
